An ISO 9001:2015 Certified Company   The Leading Manufacturer and Exporter of a Commendable and Premium Quality Filter Bags.

manufacturer of all kind off industrieal Filter bags

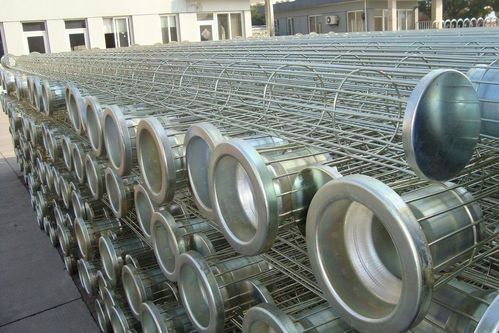

Dust Collector Cage

Minimum Order Quantity 100 Number
Cage Diameter (millimetre) Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness (millimetre) Wire thickness ranges are 2mm to 5mm
Application Power Stations Filtered dust Flue ash, discharging flue ash Coal dust
Bag Type Filter Bag
Material Carbon Steel
No Of Vertical Wire 8/10/12/16/20/24
Brand shivam
Diameter (mm) 4 inch to 8 inch (100mm to 200mm)
Condition New
Color Silver
Execution Welded
Shape snap band type

Description

bag Filter cage with Zinc galvanized Surface Finish
using the advanced hot-melt jointing technology. The jointing method of bag bottom, side and collar ring all are hot-melt welded, that can avoid the pinholes from seam filter bag.
The Filter bag cage is a rib filter cage and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.

1.Filter bag cage to be galvanized/silicon coating
2.Carbon or Stainless steel
3.Any length or dia.

The filter bag cage is the support of filter bag and it should be light and easy for installation and maintenance. The quality of filter cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.

1.material of cage: carbon steel or SS304,316,316L
2.type of cage: any style
3.type of the horizontal bar: round ring or star or envelop or oval
4.surface treatment: zinc-galvanization or silicon coating or epoxy
5.style of connection: clamp, chuck, claw join connection
6. Nos of wires: 8,10,12,16,20,24
7. The diameter of the longitudinal wire can be F3mm, F3.2mm, F3.5mm, F3.8mm or F4mm.

The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.


Additional Information
  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Port of Dispatch: VADODARA
  • Production Capacity: 500000 nos monthaly
  • Delivery Time: 5-7 days
  • Packaging Details: Cages are packed in custom designed cartons

Industrial Dust Collector Bag Filter Cage

Minimum Order Quantity 100 Piece
Brand shivam
Cage Diameter (millimetre) Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness (millimetre) Wire thickness ranges are 2mm to 5mm
Application Power Stations Filtered dust Flue ash, discharging flue ash Coal dust
No Of Vertical Wire 8/10/12/16/20/24
Condition New

manufacturer of all kind off industrieal Filter bags
Description

bag Filter cage with Zinc galvanized Surface Finish using the advanced hot melt jointing technology. The jointing method of bag bottom, side and collar ring all are hot melt welded, that can avoid the pinholes from seam filter bag.
The Filter bag cage is a rib filter cage and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.

Specifications

Ventury filter cages
The ventury filter cages from China manufacturer is a rib of a filter bag and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.
1. material of cage: carbon steel/SS304, 316, 316L
2. type of cage: any type
3. type of the horizontal bar: Any type
4. surface treatment: Galvannized or silicon power plated
The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.
The thichkness of the longitudinal wire can be F3, 3.2, 3.5, 3.8, 4.

Notices

We make filter cages of different shapes and dimensions to meet customers requirements. To supply with perfect testing for our products. Our cost is under utmost lower control because of our assembly line production. Precise, pragmatic and prudent working styles are adopted in every working procedure at CNP. We are highly responsible for every product component In addition, advanced manufacture equipment and scientific management made each finished product become the first selection of customers. By offering reliable assurance to integrate product quality with international standards with advanced equipment and technology, Professional production of dust cage skeleton, and can also design, develop, and manufacture as the clients request.

Specification

Type: Circle type,Oval type,Flat type,Special-shaped
Material: Carbon steel,Galvanized steel wire,Stainless steel,Titanium wire
Finish treatment: Galvanized,organic silicon spray,anti-corrosion treatment
The number of lingitudinal bar: 8~24 wires(Circle Type),10~16 wires (Oval Type)
Structure: Single section type bag cage,screw joint type,double wire PJE type,single wire PJE type,etc
Configuration: Venturi,protection nozzle stub

Additional Information
  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Port of Dispatch: VADODARA
  • Production Capacity: 5000 week
  • Delivery Time: 5-7 DAYS
  • Packaging Details: AS PER CLIENTS REQUIREMENTS
manufacturer of all kind off industrieal Filter bags

Oval Bag Filter Cage

Minimum Order Quantity 100 Number
Brand shivam
Wire thickness Wire thickness ranges are 2mm to 5mm
Application Power Stations Filtered dust Flue ash,discharging flue ash Coal dust
Bag Type Filter Bag
Material Carbon Steel
No Of Vertical Wire 8/10/12/16/20/24
Diameter 150/160/200
Condition Refurbished
Operating Temprature 260-280
Shape ROUND
Execution Welded
Medium Material Fiber Glass

Specifications
Types: Round Style/Flat Style/Envelope Style/ Special Style
Number Of Wires: 8/10/12/16/20/24 vertical wires
Ring Space: Ring spacing standard is 6 inch or 8 inch.(15.24cm or 20.32cm)
Cage Diameter: Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness: Wire thickness ranges are 2mm to 5mm
Material: Carbon Stee, Galvanized Steel, Stainless Steel
Finishment: Epoxy, PVC vinyl coating
Packaging: Cages are packed in custom designed cartons
Usage: Dust from factory of mine, wood,Cement, chemical, medicine, dying,Paint, plastic, food & other industry,such as coal fired power stations, Steel Power station, Cement industry, Paper industry & other Industrial Segments.
Advantages: 1.no corrosion 2.no damage 3.3-5 times longer life than other bag Cage with steel
4. economical maintenance(almost no Maintenance required)
5.prominent effect in removing dust from Filter by pulsing 6.easy to install
7.no ventury installation required
Standard Technical Data
Round Style Diameter(mm) Bag Diameter(mm) Length(mm)
115 120 2000,2400 2800,
3200,3600,4000,
4400,4800,5200,
5600,6000,7000
125 130
147 152
195 200
Flat Style Perimeter Bag Perimeter Length(mm)
800 800 2000 3000 4000
5000 6000
900 900
Envelope Style Length Width Thickness Bag Length Width Thickness
1500X750x25mm

1500X750x25mm


Additional Information
  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Port of Dispatch: VADODARA
  • Production Capacity: 500000 nos monthaly
  • Delivery Time: 12 days
  • Packaging Details: AS PER CLIENT REQUIREMENT

Any Type Industry Dust Collector Bag Filter Cage with Zinc Galvanized Treatment

Minimum Order Quantity 100 Number
Cage Diameter (millimetre) Cage diameters range from 4 inch to 8 inch (100mm to 200mm)
Wire thickness (millimetre) Wire thickness ranges are 2mm to 5mm
Application Power Stations Filtered dust Flue ash, discharging flue ash Coal dust
No Of Vertical Wire 8/10/12/16/20/24
Brand shivam
Diameter (mm) 156/153/160
Condition New
Operating Temprature(Celsius) 260-280
Filter Type snap band round type

manufacturer of all kind off industrieal Filter bags
Description

bag Filter cage with Zinc galvanized Surface Finish using the advanced hot-melt jointing technology. The jointing method of bag bottom, side and collar ring all are hot-melt welded, that can avoid the pinholes from seam filter bag.

Specifications

Ventury filter cages
The ventury filter cages from China manufacturer is a rib of a filter bag and it should be light and easy for installation and maintenance. The quality of a cage has directly bearing on the filtering state and service life of a filter bag. Every cage we make can meet the requirement for tightness, smoothness and uprightness.
1. material of cage: carbon steel/SS304, 316, 316L
2. type of cage: any type
3. type of the horizontal bar: Any type
4. surface treatment: Galvannized or silicon power plated
The vertical bar, horizontal ring, spacing ring, length, the diameter of the ring and the shape of the cage can be according with the requirement from client.
The thichkness of the longitudinal wire can be F3, 3.2, 3.5, 3.8, 4.

Notices

We make filter cages of different shapes and dimensions to meet customers requirements. To supply with perfect testing for our products. Our cost is under utmost lower control because of our assembly line production. Precise, pragmatic and prudent working styles are adopted in every working procedure at CNP. We are highly responsible for every product component In addition, advanced manufacture equipment and scientific management made each finished product become the first selection of customers. By offering reliable assurance to integrate product quality with international standards with advanced equipment and technology, Professional production of dust cage skeleton, and can also design, develop, and manufacture as the clients request.

Additional Information
  • Item Code: SF-CAG-2222
  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Port of Dispatch: VADODARA
  • Production Capacity: 5000 week
  • Delivery Time: 12 Days
  • Packaging Details: AS PER CLIENT'S REQUIREMENT
