An ISO 9001:2015 Certified Company   The Leading Manufacturer and Exporter of a Commendable and Premium Quality Filter Bags.

manufacturer of all kind off industrieal Filter bags

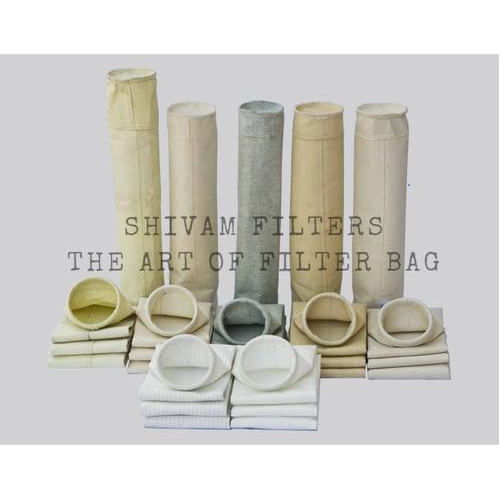

Industrial Dust Collector Filter Bag

Minimum Order Quantity 100 Piece
Color white
Brand SHIVAM
Material non woven
Application cement plant,power plant, steel plant.
Gsm 350-900 gsm
Size 150/156/160/162
Working Temperature 120-200
Optional process Sewing or Hot sealing
Medium Material Non-Woven, Fiber Glass
Usage Dust Filter
Diameter (mm) 150
Fabric non woven

Features

Providing a wide range of Dust Filter Bag For House, which improve the performance, efficiency and bottom line of your bag house dust collector and flue gas bag.


Additional Information
  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Port of Dispatch: VADODARA

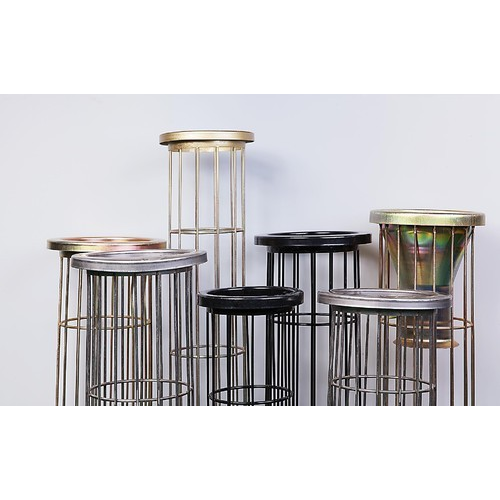

Dust Filter Bag Cage

Minimum Order Quantity 10 Piece
Brand Shivam
Diameters 4" - 8"
Vertical Support 6" - 24"
Ring Spacing 2" Min.
Bottom Closer Solid or Wire Formed
Wire Diameter 2.5 mm - 5 mm
Finishes Available Zinc Plating, HR Aluminum Paint or as per requirement
Material Stainless Steel, Mild Steel
manufacturer of all kind off industrieal Filter bags

Dust Filter Bag Cage can be made in a wide variety of diameters in both top and bottom load designs. Our cages feature custom metal specifications such as carbon steel, 304 and 316L stainless materials, or silicone plastic coated, special paints or varying levels of galvanization. Top load style cages can include an integral venturi, or where toxic materials or operating pressures are of a concern, can be designed with the venturi tube for precise leak free tubesheet connections. We can produce 1000 pcs filter cages per day (standard size).

Additional Information
  • Item Code: SF-CAG-222
  • Production Capacity: 10000 NOS PAR MONTH
  • Delivery Time: 5-7 DAYS
  • Packaging Details: AS PER CLIENT'S REQUIREMENTS
manufacturer of all kind off industrieal Filter bags

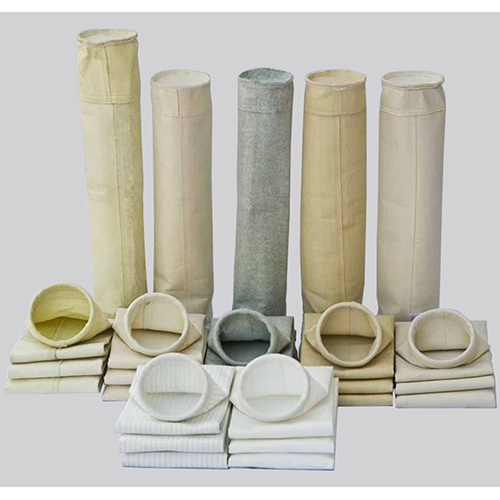

Dust Collector Filter Bag

Minimum Order Quantity 100 Piece
Fabric non woven
Filtration precision Less than or equal to 30mg/m cube (laminating PTFE film,Less than or equal to 5mg/m cube)
Finish Treatment Calendaring,Heat setting,Singeing
Thickness Upto 2 mm
Usage Dust Filter
Diameter 150/160/130
Bag Type dust collector
Color white
Brand SHIVAM
Material non woven
Gsm 350-900 gsm
Size 150/156/160/162
Working Temperature 120-200
Type Fabric

Product DescriptionAbiding by the ethical norms of the industry, we are engaged in manufacturing and supplying Industrial Filter Bag. While manufacturing these filter bags, our professionals make sure to follow the established norms and standards standards. Searching for Industrial Dust Collector Filter Bag Manufacturer, Supplier, Exporter in India, Gujarat, Ahmedabad ? Contact Shivam Filters for Dust collector filter bags. In addition to this, our professionals make sure to use optimum quality material and advanced machines to manufacture these filter bags offered by us.

Features

Perfect sheen
Durability
Low maintenance


Features
Filter Media Max Operating temperature Chemical Resistance Resistance to flexing (pulsing) Moister categories
Polyester 130 C Poor Good Good
Polypropylene 80 C Good Very Good Excellent
Nomex 205 C Poor resistance to acid & water Very Good Good
P-84 Poly-amide 240 C Good Good Good
Acrylic
(Co-polymer)
130 C Good Very good Excellent
Acrylic
(Homopolymer)
150 C Very Good Good Excellent
Fiber Glass 260 C Very Good resistance to acid & water Poor Excellent

Additional Information
  • Pay Mode Terms: L/C (Letter of Credit),T/T (Bank Transfer)
  • Production Capacity: 10000 NOS PAR MONTH
  • Delivery Time: 5-7 DAYS
  • Packaging Details: as par clients requirement
